45230-520230

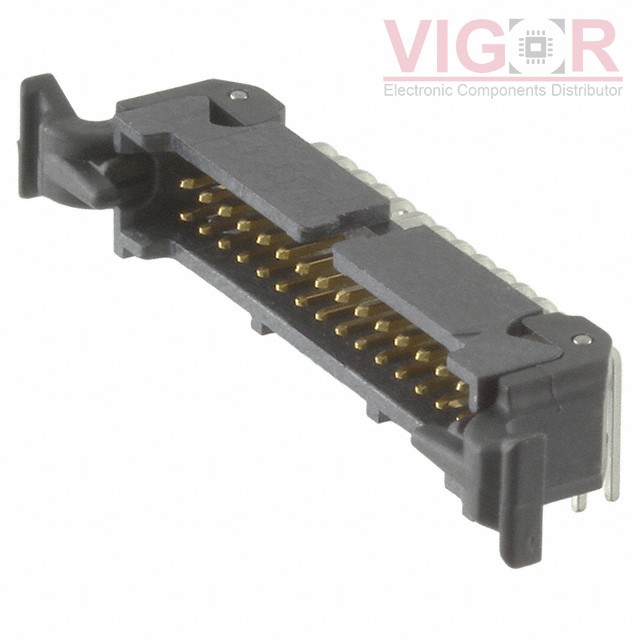

Product image
Product thumb
Part No :

45230-520230

Manufacturer
3M
VIGOR # :

3025198

Description
CONN HEADER R/A 30POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
45230-520230 PDF
Country of origin
-
Date code
-
ads
45230-520230 Specifications
Type Description
Series:452
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Short
Contact Length - Mating:-
Contact Length - Post:0.094" (2.40mm)
Overall Contact Length:-
Insulation Height:0.210" (5.33mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:125V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 8
Shipped from
HK warehouse
Expected Shipping Date
Feb 03 - Feb 07 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $8.20 $8.20
10 $7.86 $78.62
250 $5.81 $1 452.80
500 $5.47 $2 734.69
1000 $4.79 $4 785.71

Current price of 45230-520230 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
54102-S0503LF

54102-S0503LF

CONN HEADER VERT 6POS 2.54MM

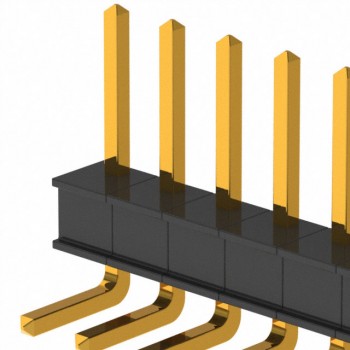

929648-01-15-EU

929648-01-15-EU

CONN HEADER R/A 15POS 2.54MM

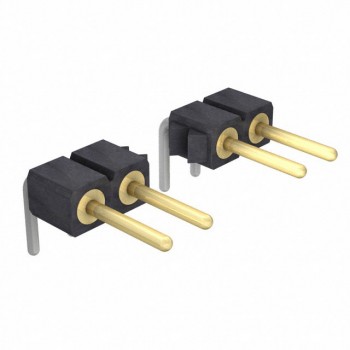

800-V3-057-20-001101
