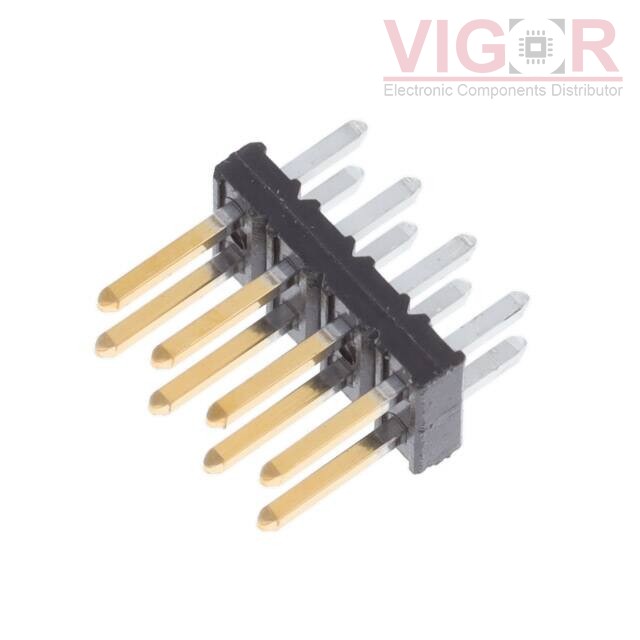

| Type | Description |
|---|---|
| Series: | Minitek® 2.00mm |
| Package: | Box |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Positions: | 8 |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.157" (4.00mm) |
| Contact Length - Post: | 0.098" (2.50mm) |
| Overall Contact Length: | 0.315" (8.00mm) |
| Insulation Height: | 0.059" (1.50mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold, GXT™ |
| Contact Finish Thickness - Mating: | 15.0µin (0.38µm) |
| Contact Finish - Post: | Tin |
| Contact Material: | Copper Alloy |
| Insulation Material: | Thermoplastic |
| Features: | - |
| Operating Temperature: | - |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 2A (AC/DC) |
| Voltage Rating: | 200V (AC/DC) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 1000 |
Current price of 57102-S06-04LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
