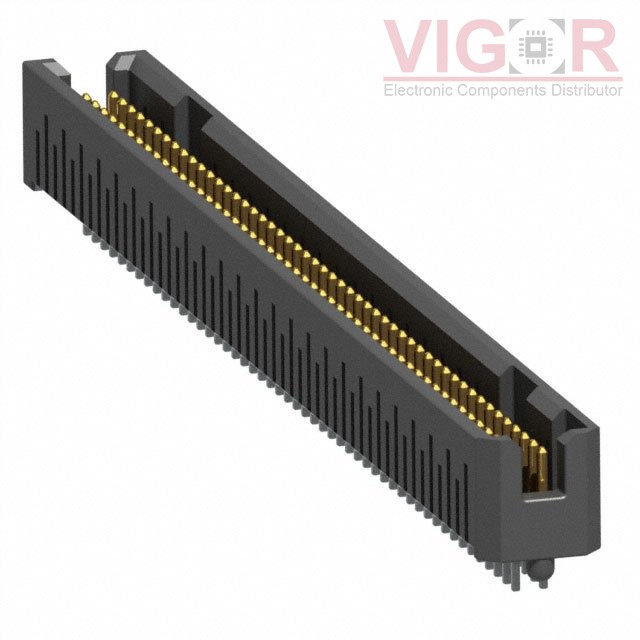

TFML-150-02-S-D-A

Image is for reference,
please contact us to get the real picture

Part No :: TFML-150-02-S-D-A

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD 100POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TFML-150-02-S-D-A PDF

Availability: 0 pieces

Unit Price: ~~$22.05000~~

Current price of TFML-150-02-S-D-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TFML-150-02-S-D-A Specifications

Type	Description
Series:	Tiger Eye™ TFML
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	100
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.134" (3.39mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
