ZLTMM-117-71-TM-D-700

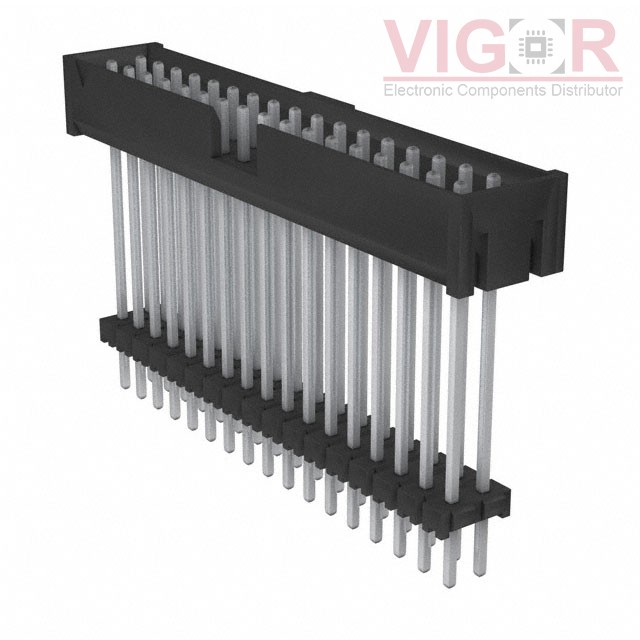

Image is for reference,
please contact us to get the real picture

Part No :: ZLTMM-117-71-TM-D-700

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 34POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: ZLTMM-117-71-TM-D-700 PDF

Availability: 0 pieces

Unit Price: ~~$7.08000~~

Current price of ZLTMM-117-71-TM-D-700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ZLTMM-117-71-TM-D-700 Specifications

Type	Description
Series:	Flex Stack, ZLTMM
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Elevated
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	34
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.135" (3.43mm)
Overall Contact Length:	0.830" (21.08mm)
Insulation Height:	0.700" (17.78mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	Keying Slot
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
