929647-07-23-I

Part No :: 929647-07-23-I

Manufacturer: 3M

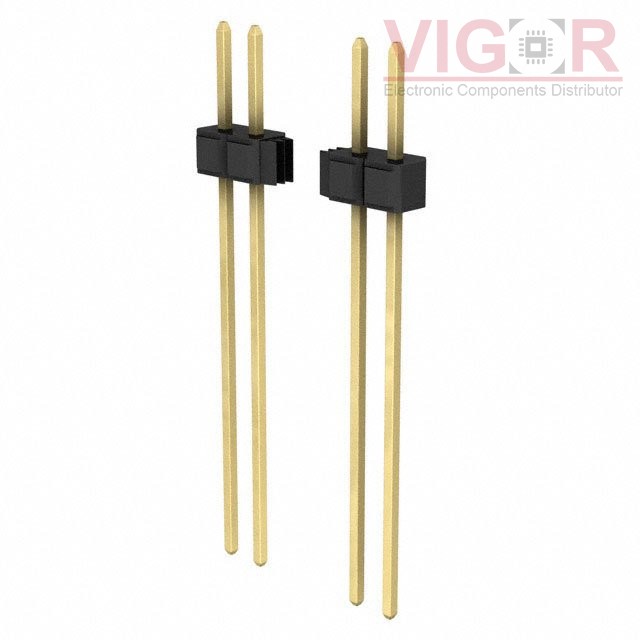

Description: CONN HEADER VERT 23POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 929647-07-23-I PDF

Availability: 0 pieces

Unit Price: ~~$6.76000~~

Current price of 929647-07-23-I is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

929647-07-23-I Specifications

Type	Description
Series:	929
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	23
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.235" (5.97mm)
Contact Length - Post:	0.910" (23.11mm)
Overall Contact Length:	1.245" (31.62mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.5A
Voltage Rating:	-
