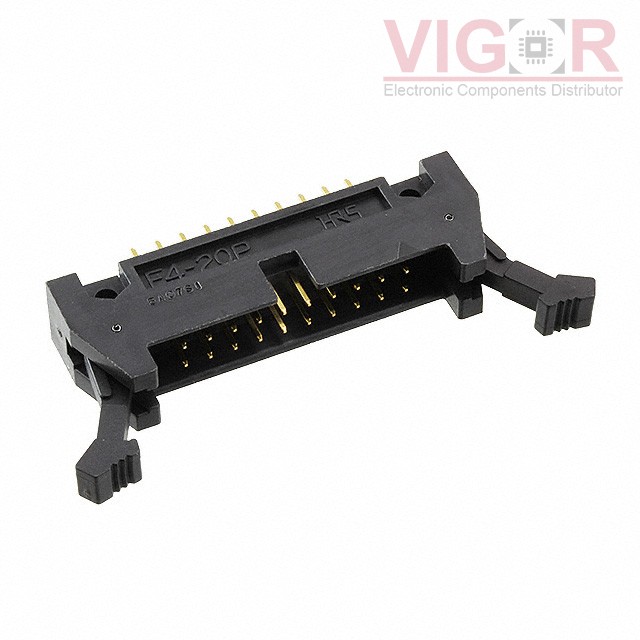

HIF4-20P-3.18DSA(01)

Part No :: HIF4-20P-3.18DSA(01)

Manufacturer: Hirose

Description: CONN HEADER VERT 20POS 3.18MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: HIF4-20P-3.18DSA(01) PDF

Availability: 0 pieces

Unit Price: ~~$12.85067~~

Current price of HIF4-20P-3.18DSA(01) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HIF4-20P-3.18DSA(01) Specifications

Type	Description
Series:	HIF4
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.125" (3.18mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	0.125" (3.18mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.201" (5.10mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	0.673" (17.09mm)
Insulation Height:	0.720" (18.30mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Keying Slot, Mounting Flange
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	300V
