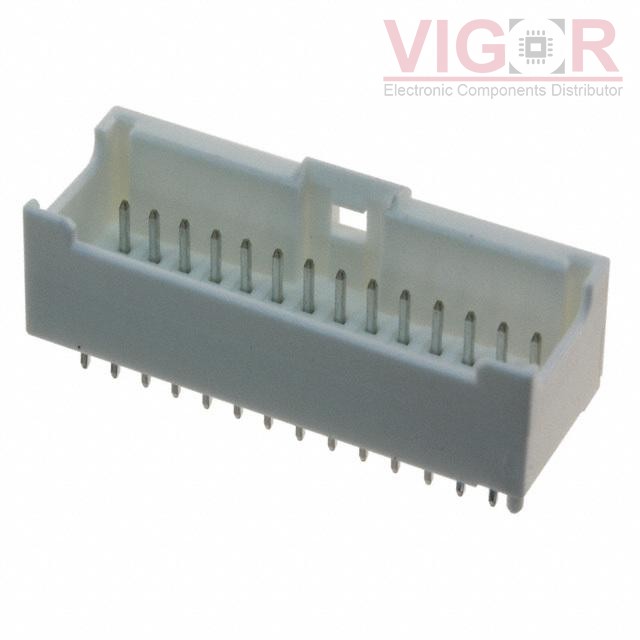

Product image
Product thumb
Part No :

0559172810

Manufacturer
Woodhead - Molex
VIGOR # :

3027777

Description
CONN HEADER VERT 28POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0559172810 PDF
Country of origin
-
Date code
-
ads
0559172810 Specifications
Type Description
Series:MicroClasp 55917
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:28
Number of Rows:2
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.150" (3.81mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:0.366" (9.30mm)
Insulation Height:0.384" (9.75mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 2249
Shipped from
HK warehouse
Expected Shipping Date
Apr 11 - Apr 15 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.2700 $1.27
10 $1.1188 $11.19
400 $0.8775 $351.00
800 $0.7678 $614.25
1200 $0.7020 $842.40
5200 $0.6142 $3 194.10
10000 $0.5835 $5 835.30

Current price of 0559172810 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

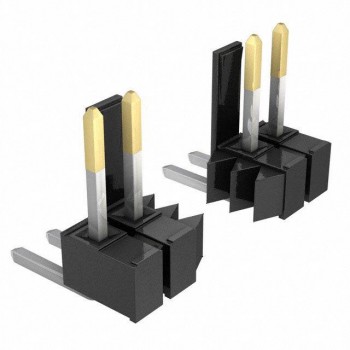

0022282158

0022282158

CONN HEADER R/A 15POS 2.54MM

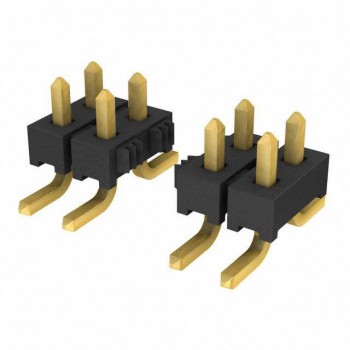

TMM-110-05-SM-D-SM-P-TR
