5019400403

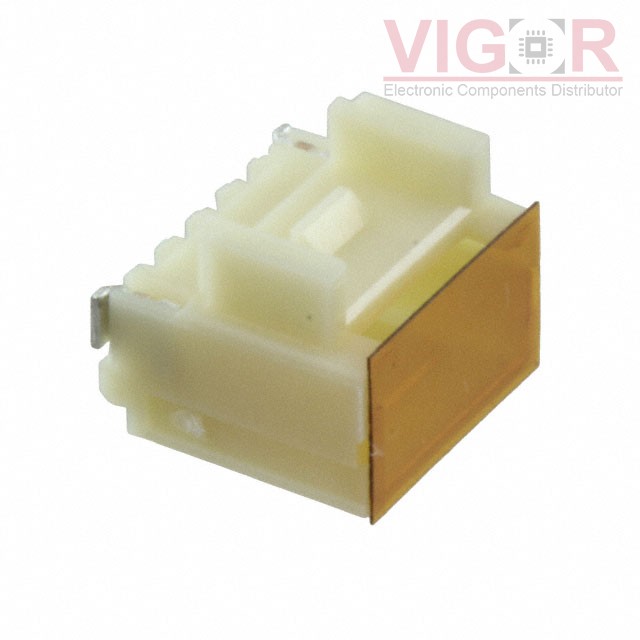

Product image
Product thumb
Part No :

5019400403

Manufacturer
Woodhead - Molex
VIGOR # :

3028532

Description
CONN HEADER SMD 4POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
5019400403 PDF
Country of origin
-
Date code
-
ads
5019400403 Specifications
Type Description
Series:Pico-Clasp 501940
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.179" (4.55mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.90µin (0.099µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 4480
Shipped from
HK warehouse
Expected Shipping Date
Oct 31 - Nov 04 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.7200 $0.72
8800 $0.3036 $2 671.77

Current price of 5019400403 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

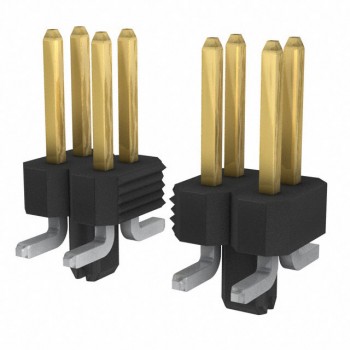

98401-101A40LF

98401-101A40LF

CONN HEADER SMD 40POS 2.54MM

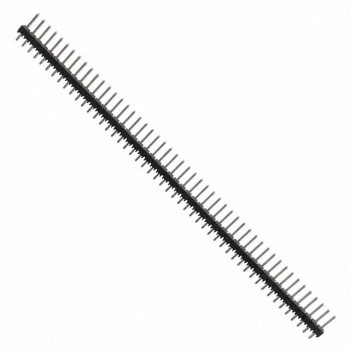

TSW-150-07-T-S

TSW-150-07-T-S

CONN HEADER VERT 50POS 2.54MM

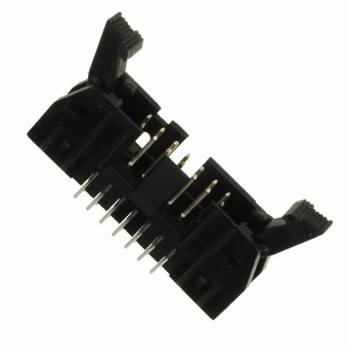

499374-2
