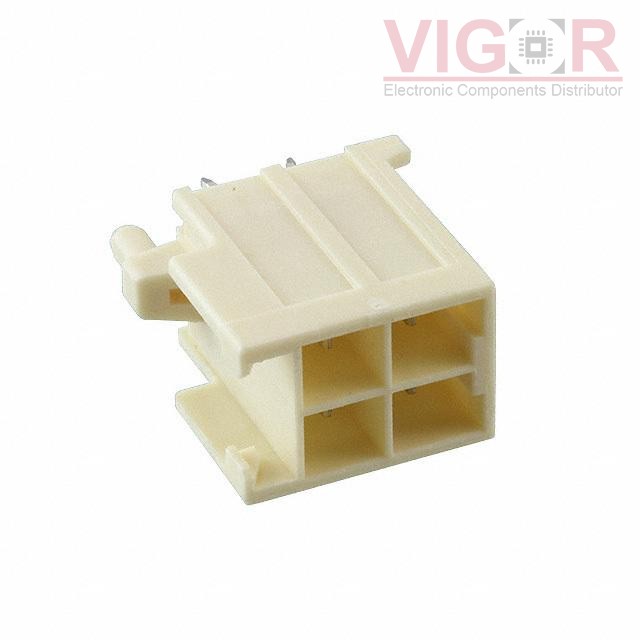

179840-1

Part No :: 179840-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 4POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 179840-1 PDF

Availability: 0 pieces

Unit Price: ~~$1.59000~~

Current price of 179840-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

179840-1 Specifications

Type	Description
Series:	Power Double Lock
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.181" (4.60mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.575" (14.60mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	Board Guide
Operating Temperature:	-30°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	-
