1-1744427-0

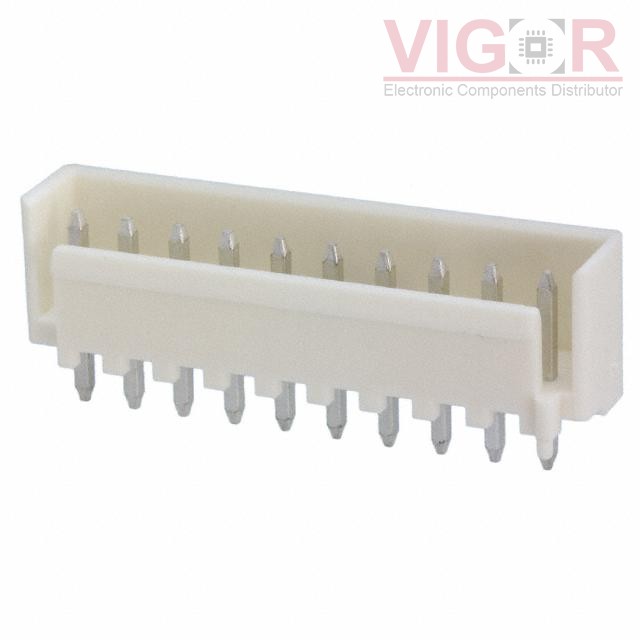

Image is for reference,
please contact us to get the real picture

Part No :: 1-1744427-0

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 10POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-1744427-0 PDF

Availability: 0 pieces

Unit Price: ~~$0.60641~~

Current price of 1-1744427-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-1744427-0 Specifications

Type	Description
Series:	Economy Power
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.306" (7.77mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	0.567" (14.40mm)
Insulation Height:	0.472" (12.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Board Guide, Glow Wire Compliant
Operating Temperature:	-25°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	-
Current Rating (Amps):	7.5A
Voltage Rating:	250VAC

Please confirm the specifications of the products when ordering.
