FI-W19P-HFE

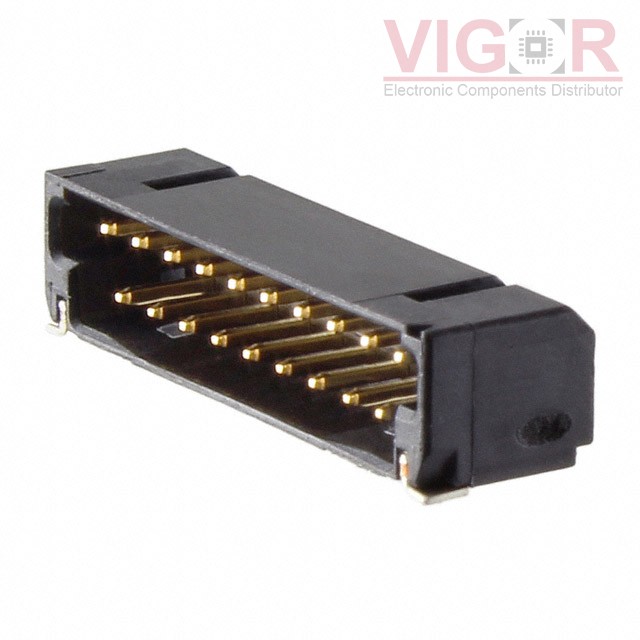

Image is for reference,
please contact us to get the real picture

Part No :: FI-W19P-HFE

Manufacturer: JAE Electronics

Description: CONN HEADER SMD R/A 19POS 1.25MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FI-W19P-HFE PDF

Availability: 0 pieces

Unit Price: ~~$3.42000~~

Current price of FI-W19P-HFE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FI-W19P-HFE Specifications

Type	Description
Series:	FI
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	19
Number of Rows:	2
Row Spacing - Mating:	0.055" (1.40mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	0.094" (2.40mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.146" (3.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin or Tin-Alloy
Contact Material:	Copper Alloy
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Solder Retention
Operating Temperature:	-40°C ~ 80°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	200V
