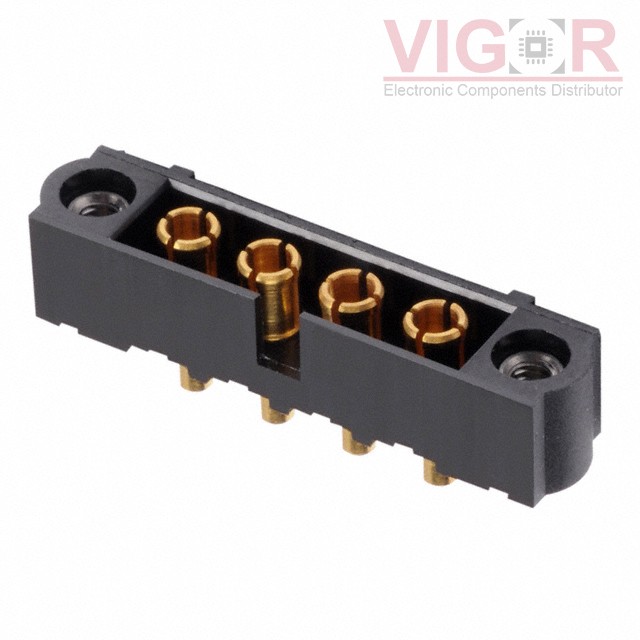

M80-5000000M1-04-331-00-000

Part No :: M80-5000000M1-04-331-00-000

Manufacturer: Harwin

Description: CONN HEADER VERT 4POS 4MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M80-5000000M1-04-331-00-000 PDF

Availability: 89 pieces

Current price of M80-5000000M1-04-331-00-000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M80-5000000M1-04-331-00-000 Specifications

Type	Description
Series:	Datamate Mix-Tek
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin, Power
Pitch - Mating:	0.157" (4.00mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Threaded
Contact Length - Mating:	-
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.220" (5.60mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	-
Contact Material:	Copper Alloy
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Keying Slot, Mating Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	20A
Voltage Rating:	800V

Please confirm the specifications of the products when ordering.
