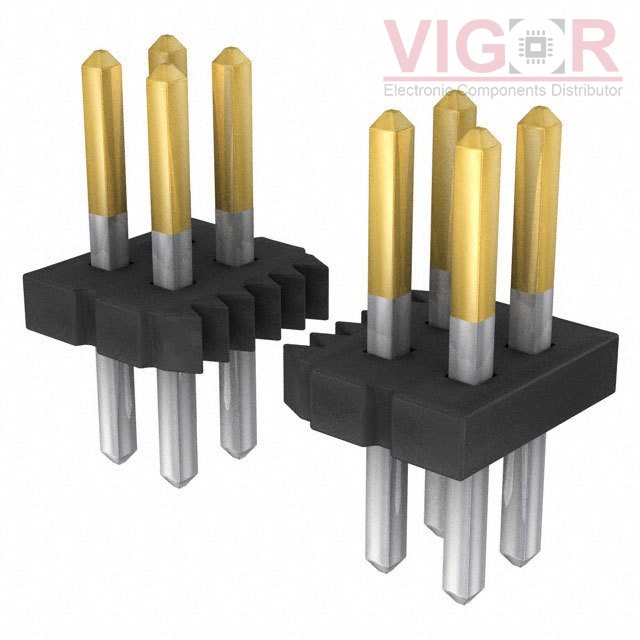

FTS-107-01-L-D

Part No :: FTS-107-01-L-D

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 14POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FTS-107-01-L-D PDF

Availability: 148 pieces

Unit Price: ~~$1.97000~~

Current price of FTS-107-01-L-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FTS-107-01-L-D Specifications

Type	Description
Series:	FTS
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	14
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	0.090" (2.29mm)
Overall Contact Length:	0.244" (6.20mm)
Insulation Height:	0.034" (0.86mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3.4A per Contact
Voltage Rating:	-
