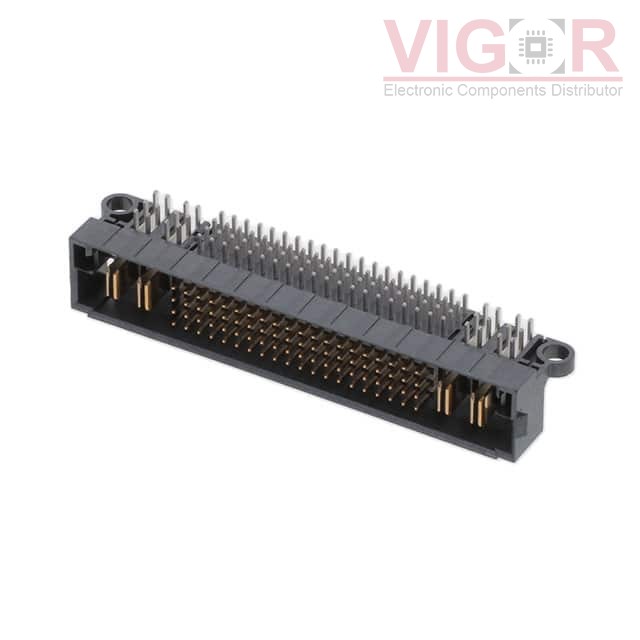

MPTC-02-80-02-01-01-L-RA-SD

Part No :: MPTC-02-80-02-01-01-L-RA-SD

Manufacturer: Samtec, Inc.

VIGOR # :: 3030376

Description: CONN HEADER R/A 84POS

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MPTC-02-80-02-01-01-L-RA-SD PDF

Country of origin: -

Date code: -

MPTC-02-80-02-01-01-L-RA-SD Specifications

Type	Description
Series:	PowerStrip™ 30 MPTC
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade; Male Pin
Pitch - Mating:	-
Number of Positions:	84 (80 + 4 Power)
Number of Rows:	4
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.107" (2.71mm)
Overall Contact Length:	-
Insulation Height:	0.490" (12.44mm)
Contact Shape:	Rectangular, Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy, Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 27 - Jan 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.18~~	~~$12.18~~
48	~~$10.80~~	~~$518.20~~
144	~~$9.41~~	~~$1 355.30~~
528	~~$8.03~~	~~$4 238.64~~
1008	~~$7.36~~	~~$7 422.28~~

Current price of MPTC-02-80-02-01-01-L-RA-SD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

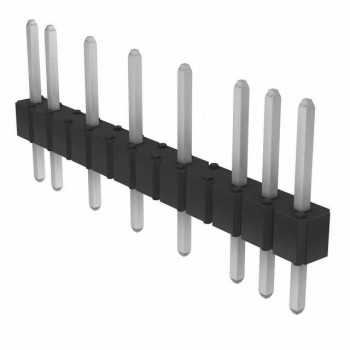

77312-483LF

CONN HEADER VERT 12POS 2.54MM

FTSH-112-04-L-MT-TR

CONN HEADER SMD R/A 24POS 1.27MM

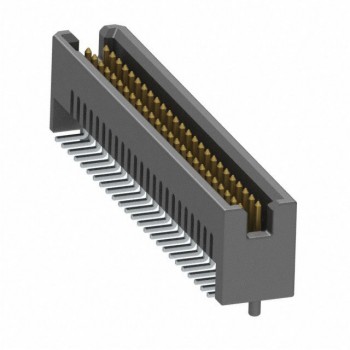

TFM-125-12-SM-D-A-P
