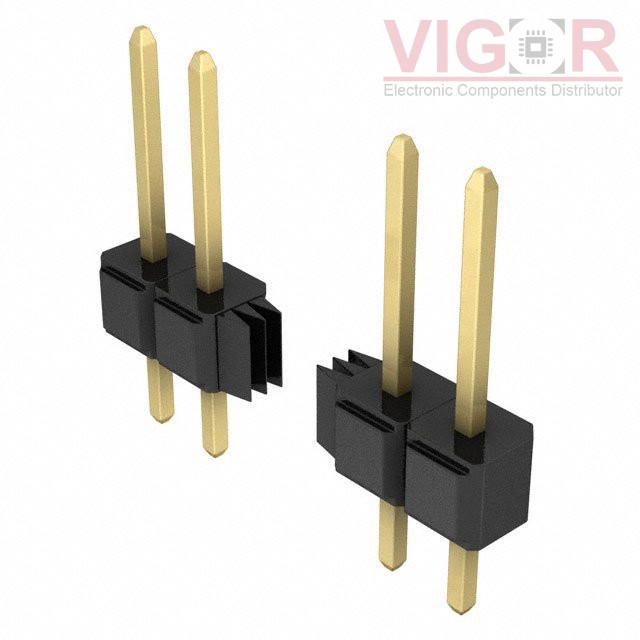

929450-01-11-I

Part No :: 929450-01-11-I

Manufacturer: 3M

Description: CONN HEADER VERT 11POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 929450-01-11-I PDF

Availability: 834 pieces

Current price of 929450-01-11-I is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

929450-01-11-I Specifications

Type	Description
Series:	929
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	11
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.295" (7.49mm)
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	0.535" (13.59mm)
Insulation Height:	0.110" (2.79mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.5A
Voltage Rating:	-
