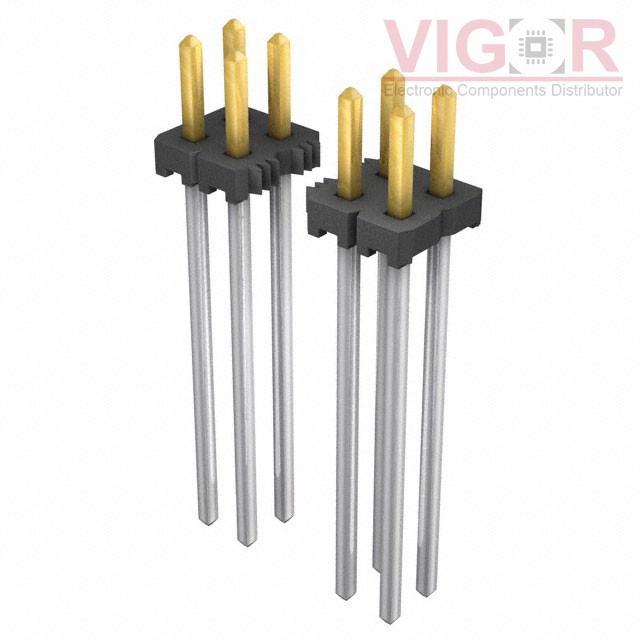

MTLW-106-10-L-D-650

Part No :: MTLW-106-10-L-D-650

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 12POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MTLW-106-10-L-D-650 PDF

Availability: 487 pieces

Current price of MTLW-106-10-L-D-650 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MTLW-106-10-L-D-650 Specifications

Type	Description
Series:	Flex Stack, MTLW
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.650" (16.51mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	0.830" (21.08mm)
Insulation Height:	0.060" (1.52mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	5.2A per Contact
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
