292171-9

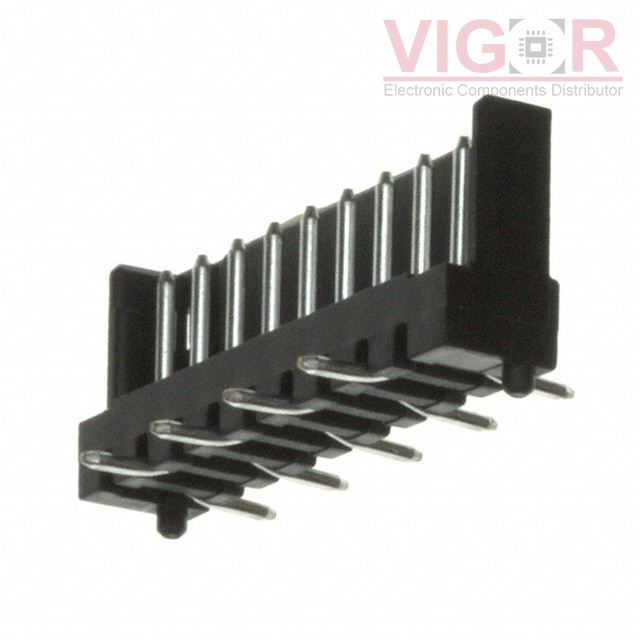

Image is for reference,
please contact us to get the real picture

Part No :: 292171-9

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER SMD 9POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 292171-9 PDF

Availability: 5975 pieces

Unit Price: ~~$1.54000~~

Current price of 292171-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

292171-9 Specifications

Type	Description
Series:	CT
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	9
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.177" (4.50mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.307" (7.80mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA6T), Nylon 6T, Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	125VAC
