86130142113345E1LF

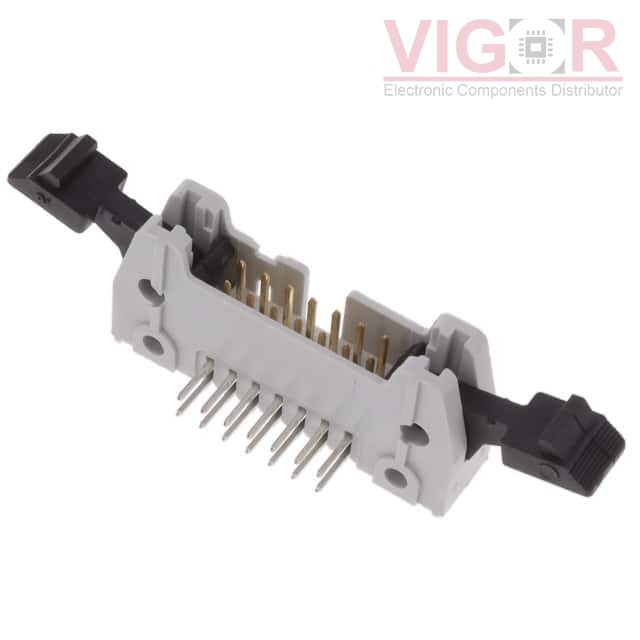

Image is for reference,
please contact us to get the real picture

Part No :: 86130142113345E1LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER R/A 14POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 86130142113345E1LF PDF

Availability: 0 pieces

Unit Price: ~~$0.75000~~

Current price of 86130142113345E1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

86130142113345E1LF Specifications

Type	Description
Series:	Quickie™
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	14
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks, Long
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.165" (4.19mm)
Overall Contact Length:	-
Insulation Height:	0.344" (8.75mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Keying Slot
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	250V
