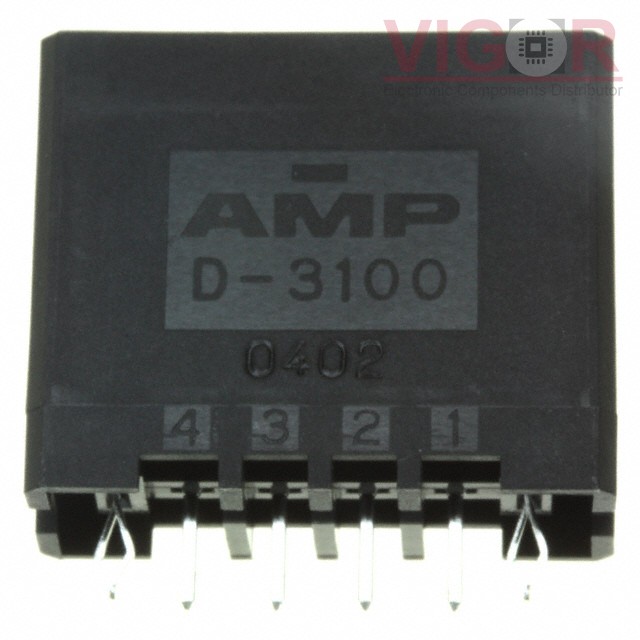

2-178314-5

Part No :: 2-178314-5

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 4POS 3.81MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2-178314-5 PDF

Availability: 0 pieces

Unit Price: ~~$0.95185~~

Current price of 2-178314-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2-178314-5 Specifications

Type	Description
Series:	Dynamic D-3100
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.150" (3.81mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.850" (21.59mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	78.7µin (2.00µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	250V
