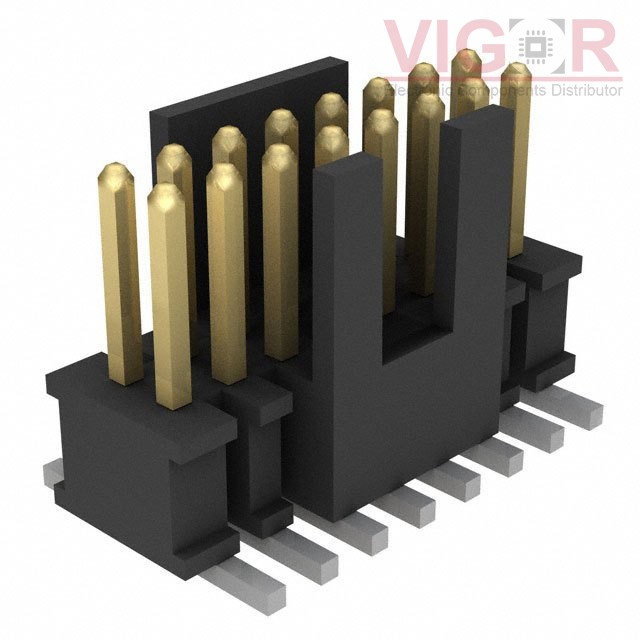

FTSH-108-01-F-DV-K-P

Part No :: FTSH-108-01-F-DV-K-P

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD 16POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FTSH-108-01-F-DV-K-P PDF

Availability: 38 pieces

Unit Price: ~~$4.22000~~

Current price of FTSH-108-01-F-DV-K-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FTSH-108-01-F-DV-K-P Specifications

Type	Description
Series:	FTSH
Package:	Tube
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.120" (3.05mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.099" (2.51mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Keying Shroud, Pick and Place
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3.4A per Contact
Voltage Rating:	-
