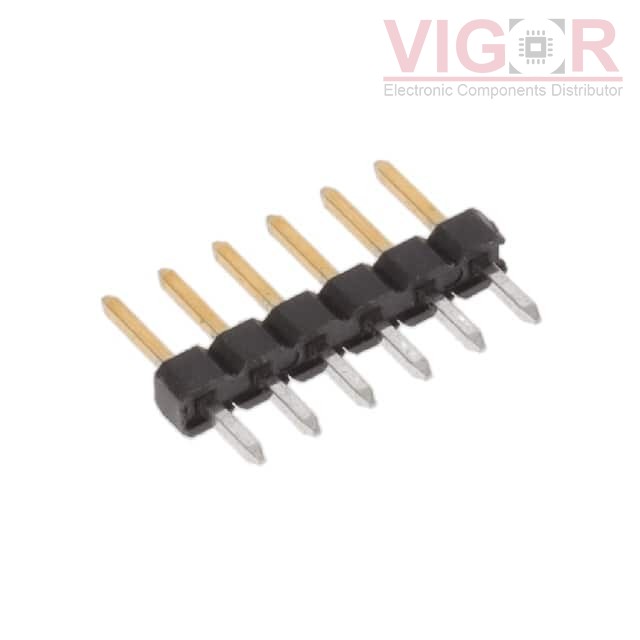

2355182-6

Part No :: 2355182-6

Manufacturer: TE Connectivity AMP Connectors

Description: 6P,2MM,BRK HDR,SRVT,2.8,0.76AU,T

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 2355182-6 PDF

Availability: 2138 pieces

Unit Price: ~~$0.73000~~

Current price of 2355182-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2355182-6 Specifications

Type	Description
Series:	AMPMODU
Package:	Tube
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	6
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.157" (4.00mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.327" (8.30mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic
Features:	-
Operating Temperature:	-40°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2A
Voltage Rating:	125VAC/DC
