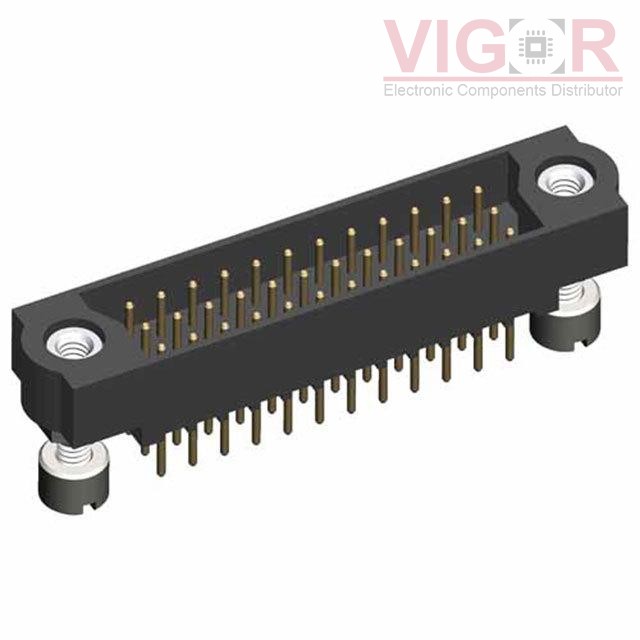

M83-LMT2M3N60-0000-000

Part No :: M83-LMT2M3N60-0000-000

Manufacturer: Harwin

Description: CONN HEADER VERT 60POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M83-LMT2M3N60-0000-000 PDF

Availability: 19 pieces

Unit Price: ~~$21.13000~~

Current price of M83-LMT2M3N60-0000-000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M83-LMT2M3N60-0000-000 Specifications

Type	Description
Series:	Datamate J-Tek
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	60
Number of Rows:	3
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Threaded
Contact Length - Mating:	-
Contact Length - Post:	0.173" (4.40mm)
Overall Contact Length:	-
Insulation Height:	0.238" (6.05mm)
Contact Shape:	Circular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	29.5µin (0.75µm)
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Mating Flange, Mounting Flange, Mounting Hardware
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	2.2A per Contact
Voltage Rating:	120V
