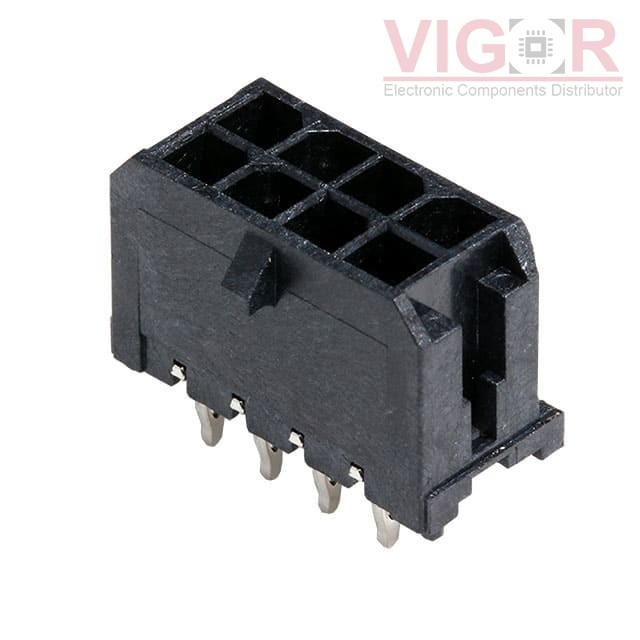

0449145802

Part No :: 0449145802

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 8POS 3MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0449145802 PDF

Availability: 1271 pieces

Unit Price: ~~$3.15000~~

Current price of 0449145802 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0449145802 Specifications

Type	Description
Series:	Micro-Fit 3.0 CPI 44914
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Press-Fit, Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.125" (3.18mm)
Overall Contact Length:	-
Insulation Height:	0.390" (9.91mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Modified Tin/Brass Alloy
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1271

Shipped from

HK warehouse

Expected Shipping Date

Nov 20 - Nov 24 2025

Enter Quantity

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	$3.15000	$3.15
10	$3.02178	$30.2178
25	$2.76958	$69.2395
50	$2.64358	$132.179
100	$2.51778	$251.778
250	$2.20306	$550.765
500	$2.14012	$1070.06
1440	$1.82539	$2628.5616
2880	$1.69951	$4894.5888

Hot Products

EHT-120-01-L-D-SM

CONN HEADER SMD 40POS 2MM

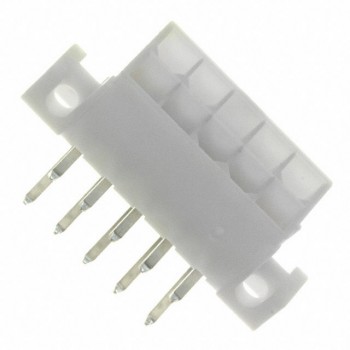

0039291107

CONN HEADER R/A 10POS 4.2MM

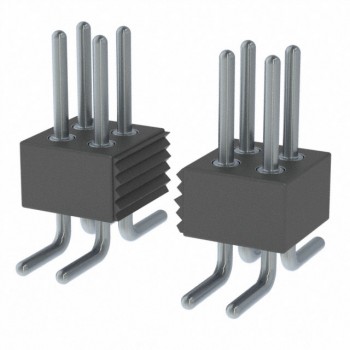

852-90-024-30-001000
