1-316080-2

1-316080-2

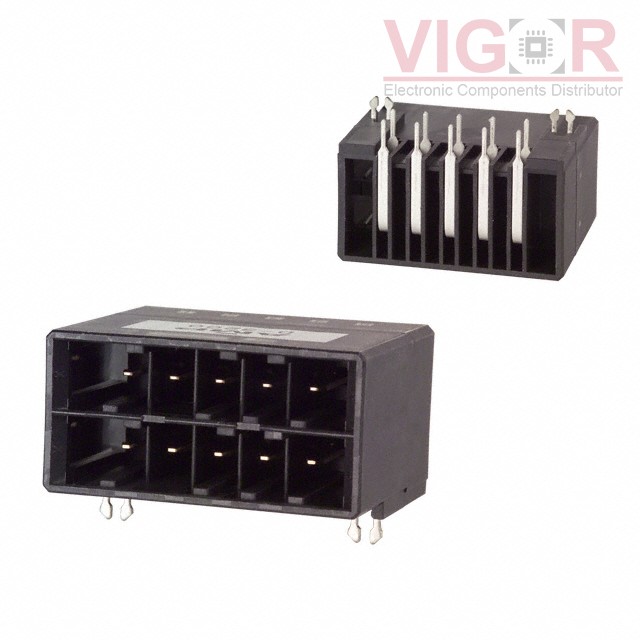

Image is for reference,
please contact us to get the real picture

Part No :

1-316080-2

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 10POS 5.08MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Oct 03 - Oct 07 2025
DataSheet
1-316080-2 PDF
Availability
0 pieces
Unit Price
$4.27000

Current price of 1-316080-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-316080-2 Specifications
Type Description
Series:Dynamic D-3200
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.200" (5.08mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.300" (7.62mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:-
Insulation Height:0.668" (16.97mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:600V
