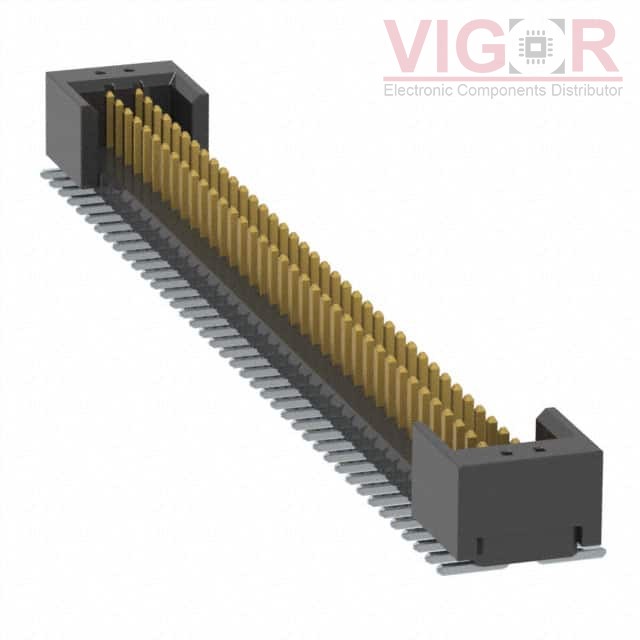

FTM-136-02-F-DV-S

Part No :: FTM-136-02-F-DV-S

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD 72POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: FTM-136-02-F-DV-S PDF

Availability: 0 pieces

Current price of FTM-136-02-F-DV-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FTM-136-02-F-DV-S Specifications

Type	Description
Series:	FTM
Package:	Tube
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	72
Number of Rows:	2
Row Spacing - Mating:	0.039" (1.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.075" (1.90mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.038" (0.97mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	End Shrouds
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	2.8A per Contact
Voltage Rating:	-
