0768290004

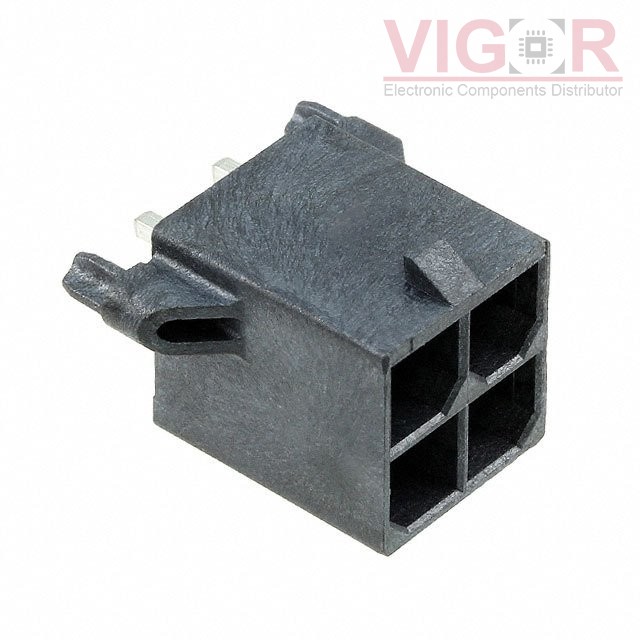

Product image
Product thumb
Part No :

0768290004

Manufacturer
Woodhead - Molex
VIGOR # :

3033870

Description
CONN HEADER VERT 4POS 5.7MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
0768290004 PDF
Country of origin
-
Date code
-
ads
0768290004 Specifications
Type Description
Series:Mega-Fit
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.224" (5.70mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.224" (5.70mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.147" (3.73mm)
Overall Contact Length:-
Insulation Height:0.583" (14.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Copper
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 124861200
Shipped from
HK warehouse
Expected Shipping Date
Jan 26 - Jan 30 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.57 $1.57
10 $1.43 $14.34
25 $1.35 $33.83
50 $1.30 $64.95
100 $1.24 $124.48
250 $1.14 $284.15
500 $1.06 $527.70
1200 $0.92 $1 104.10
3600 $0.87 $3 117.46

Current price of 0768290004 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

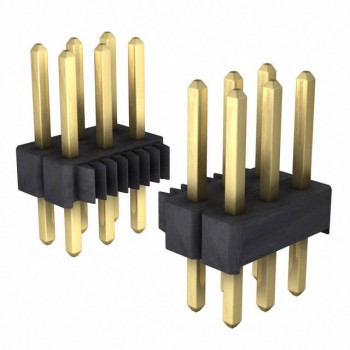

894-70-084-10-001101

894-70-084-10-001101

CONN HEADER VERT 84POS 2.54MM

TSW-137-17-G-S

TSW-137-17-G-S

CONN HEADER VERT 37POS 2.54MM

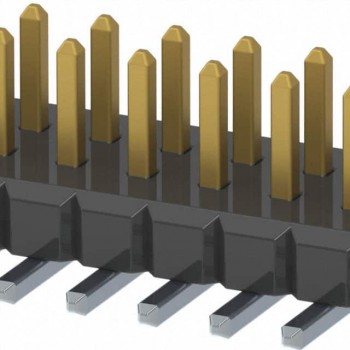

FTM-150-03-F-DV
