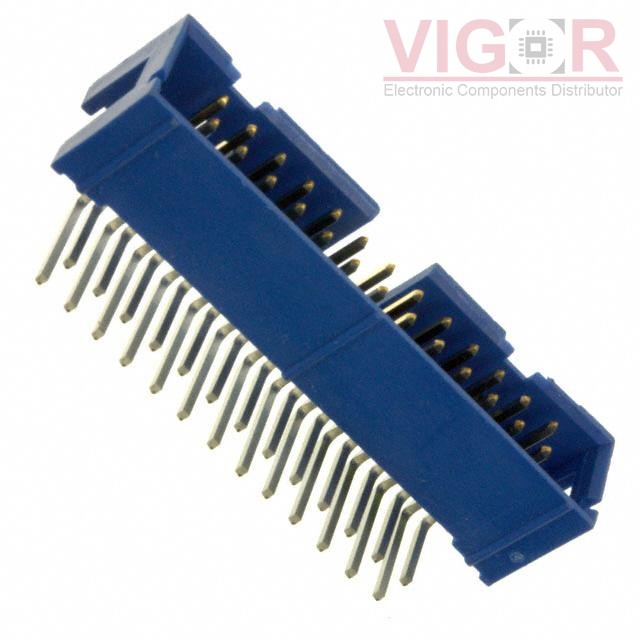

75867-105LF

Part No :: 75867-105LF

Manufacturer: Storage & Server IO (Amphenol ICC)

Description: CONN HEADER R/A 26POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 75867-105LF PDF

Availability: 517 pieces

Unit Price: ~~$1.96000~~

Current price of 75867-105LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

75867-105LF Specifications

Type	Description
Series:	Quickie™
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	26
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.236" (6.00mm)
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	-
Insulation Height:	0.362" (9.20mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold, GXT™
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Thermoplastic, Glass Filled
Features:	Keying Slot
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Blue
Current Rating (Amps):	-
Voltage Rating:	-
