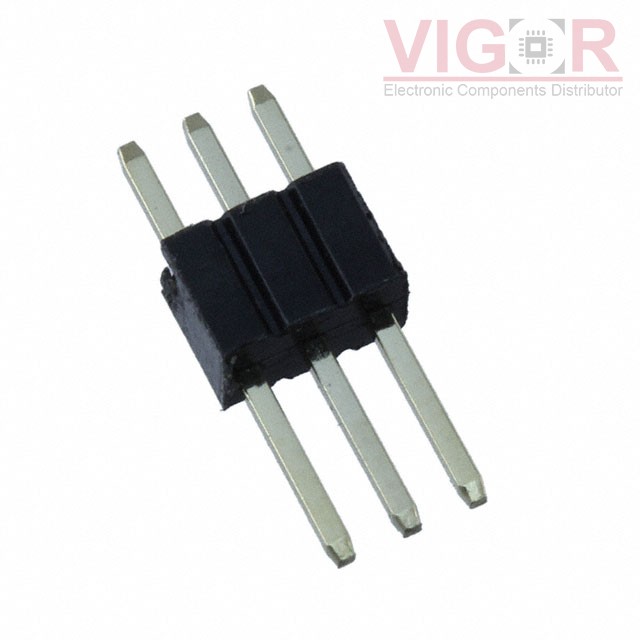

M52-040023V0345

Part No :: M52-040023V0345

Manufacturer: Harwin

Description: CONN HEADER VERT 3POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M52-040023V0345 PDF

Availability: 1738 pieces

Unit Price: ~~$0.68000~~

Current price of M52-040023V0345 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M52-040023V0345 Specifications

Type	Description
Series:	Archer M52
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.157" (4.00mm)
Contact Length - Post:	0.091" (2.30mm)
Overall Contact Length:	0.346" (8.80mm)
Insulation Height:	0.098" (2.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	-
