81080-560403-RB

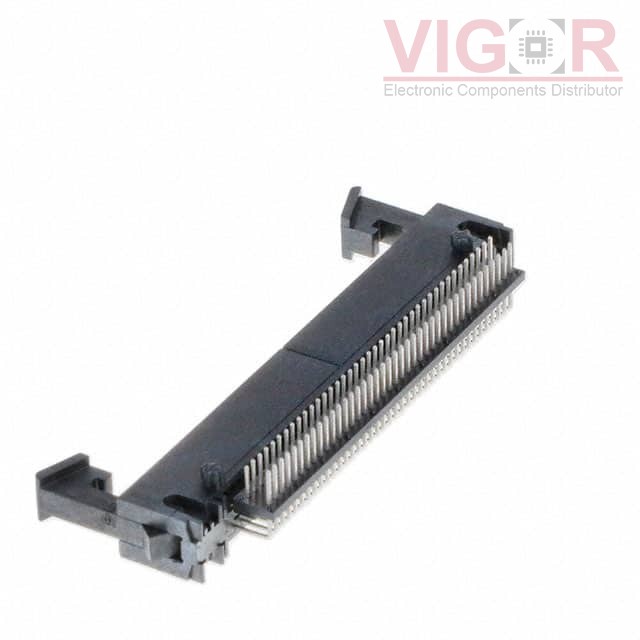

Image is for reference,
please contact us to get the real picture

Part No :: 81080-560403-RB

Manufacturer: 3M

Description: CONN HEADER R/A 80POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 81080-560403-RB PDF

Availability: 345 pieces

Unit Price: ~~$20.60000~~

Current price of 81080-560403-RB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

81080-560403-RB Specifications

Type	Description
Series:	810
Package:	Box
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	80
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.140" (3.56mm)
Contact Length - Post:	0.143" (3.63mm)
Overall Contact Length:	-
Insulation Height:	0.310" (7.87mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	0.75A
Voltage Rating:	-

Please confirm the specifications of the products when ordering.
