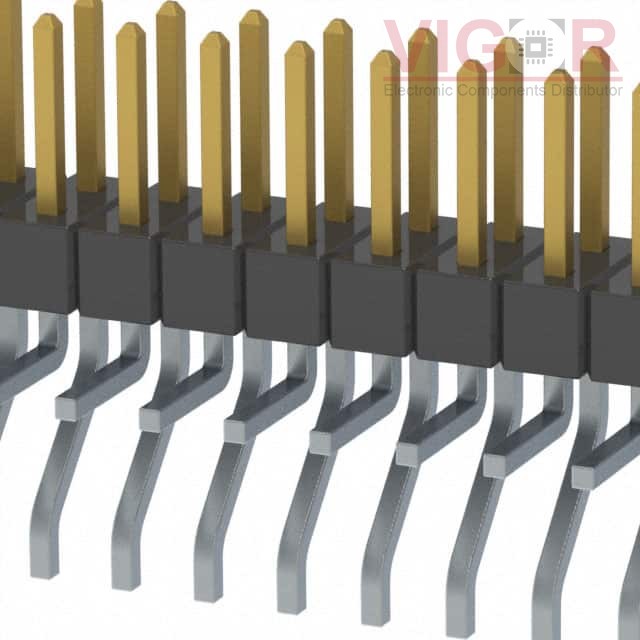

MMT-111-02-S-MT-P

Part No :: MMT-111-02-S-MT-P

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD R/A 22POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: MMT-111-02-S-MT-P PDF

Availability: 0 pieces

Current price of MMT-111-02-S-MT-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MMT-111-02-S-MT-P Specifications

Type	Description
Series:	MMT
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	22
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Surface Mount, Right Angle; Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.175" (4.45mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.157" (4.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Pick and Place
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3A
Voltage Rating:	-
