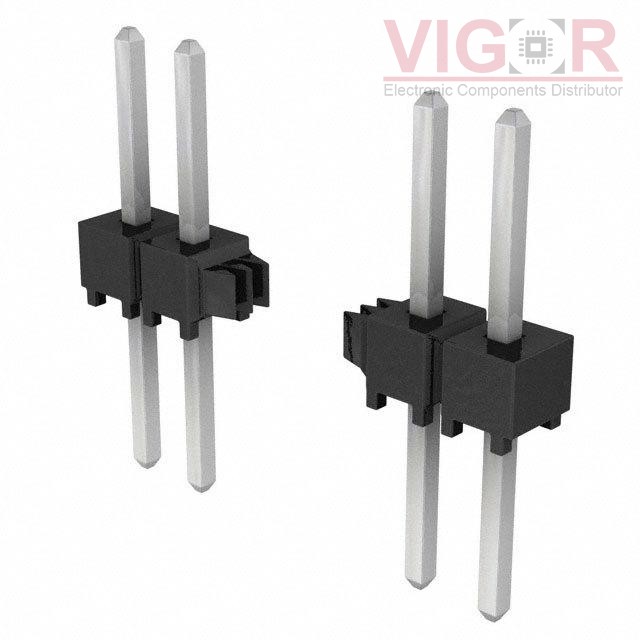

TSW-149-08-T-S

Part No :: TSW-149-08-T-S

Manufacturer: Samtec, Inc.

Description: CONN HEADER VERT 49POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: TSW-149-08-T-S PDF

Availability: 0 pieces

Unit Price: ~~$2.53000~~

Current price of TSW-149-08-T-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSW-149-08-T-S Specifications

Type	Description
Series:	TSW
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	49
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.230" (5.84mm)
Contact Length - Post:	0.200" (5.08mm)
Overall Contact Length:	0.530" (13.46mm)
Insulation Height:	0.100" (2.54mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	-
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
