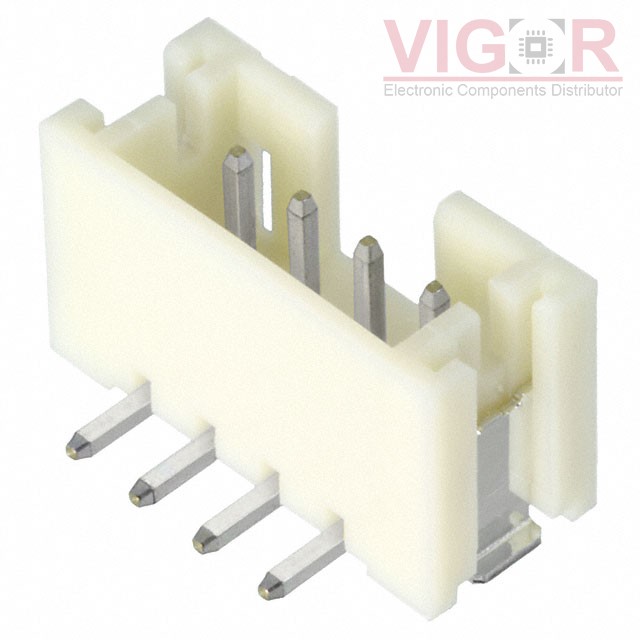

B4B-PH-SM4-TB(LF)(SN)

Part No :: B4B-PH-SM4-TB(LF)(SN)

Manufacturer: JST

Description: CONN HEADER SMD 4POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: B4B-PH-SM4-TB(LF)(SN) PDF

Availability: 53423 pieces

Unit Price: ~~$0.73000~~

Current price of B4B-PH-SM4-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B4B-PH-SM4-TB(LF)(SN) Specifications

Type	Description
Series:	PH
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.130" (3.30mm)
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.260" (6.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	Solder Retention
Operating Temperature:	-25°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	2A
Voltage Rating:	100V
