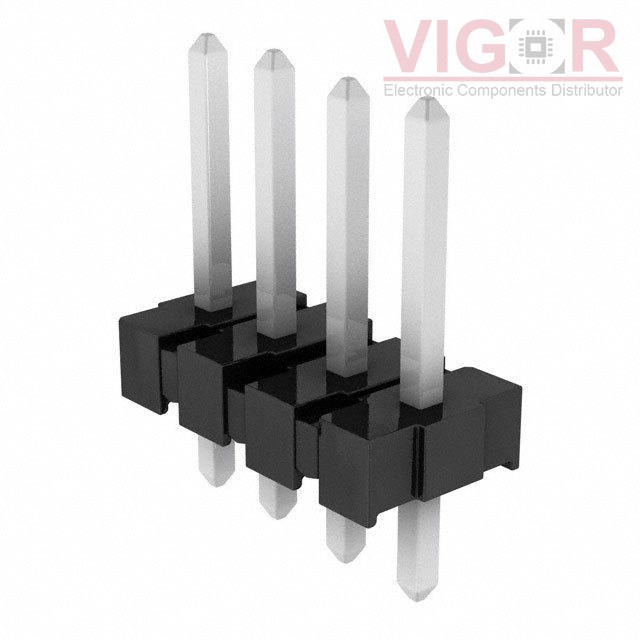

0026484042

Part No :: 0026484042

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 4POS 3.96MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0026484042 PDF

Availability: 0 pieces

Unit Price: ~~$0.17715~~

Current price of 0026484042 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0026484042 Specifications

Type	Description
Series:	KK396, 41661
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Breakaway
Contact Type:	Male Pin
Pitch - Mating:	0.156" (3.96mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.531" (13.50mm)
Contact Length - Post:	0.541" (13.74mm)
Overall Contact Length:	1.200" (30.48mm)
Insulation Height:	0.128" (3.25mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	60.0µin (1.52µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
