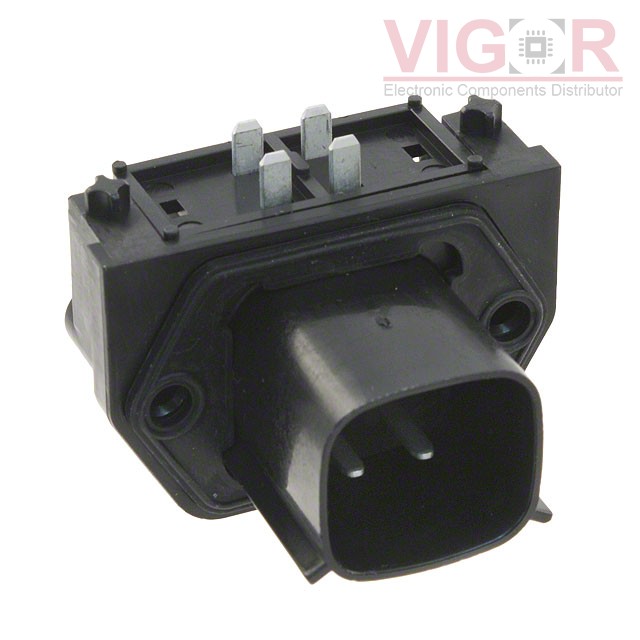

0194370029

Part No :: 0194370029

Manufacturer: Woodhead - Molex

Description: CONN HEADER R/A 4POS 7.62MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0194370029 PDF

Availability: 3 pieces

Current price of 0194370029 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0194370029 Specifications

Type	Description
Series:	MX150L 19437
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.300" (7.62mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.300" (7.62mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Panel Mount, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	1.350" (34.30mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Guide, Mounting Flange
Operating Temperature:	-
Ingress Protection:	IP67 - Dust Tight, Waterproof
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
