AT15-12PC-BM01

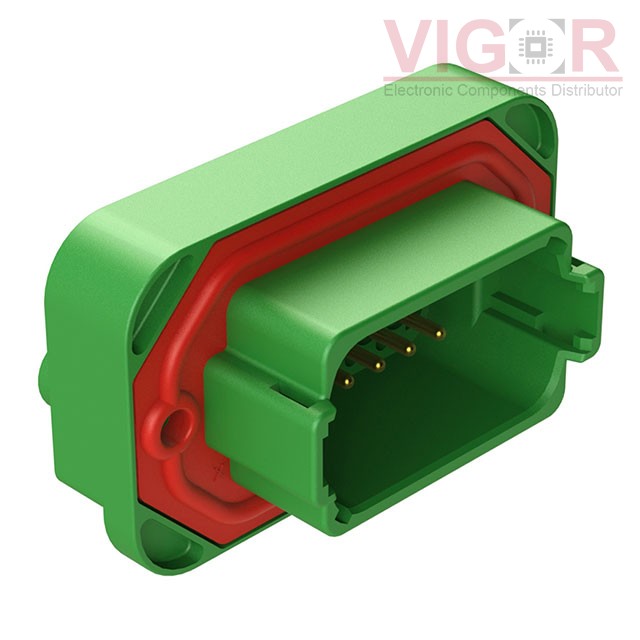

Product image
Product thumb
Part No :

AT15-12PC-BM01

Manufacturer
Tuchel / Amphenol
VIGOR # :

3038250

Description
CONN HEADER VERT 12POS
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
AT15-12PC-BM01 PDF
Country of origin
-
Date code
-
ads
AT15-12PC-BM01 Specifications
Type Description
Series:BoardLock™ AT
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.358" (9.10mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.122" (3.10mm)
Overall Contact Length:-
Insulation Height:1.185" (30.10mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Gold
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide, Mating Flange, Mounting Flange
Operating Temperature:-55°C ~ 125°C
Ingress Protection:IP67
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):13A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 15050
Shipped from
HK warehouse
Expected Shipping Date
May 25 - May 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $14.8100 $14.81
10 $13.4898 $134.90
30 $12.9766 $389.30
60 $12.2435 $734.61
120 $11.8769 $1 425.23
270 $11.2904 $3 048.42

Current price of AT15-12PC-BM01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
890-18-020-10-001101

890-18-020-10-001101

CONN HEADER VERT 20POS 2.54MM

TSW-128-05-G-D

TSW-128-05-G-D

CONN HEADER VERT 56POS 2.54MM

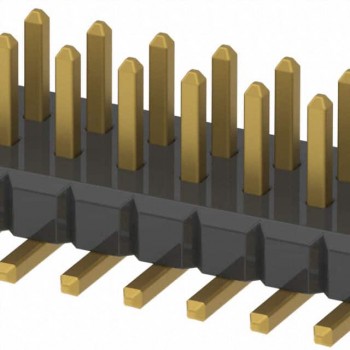

FTM-120-03-G-DV-TR
