104809-3

104809-3

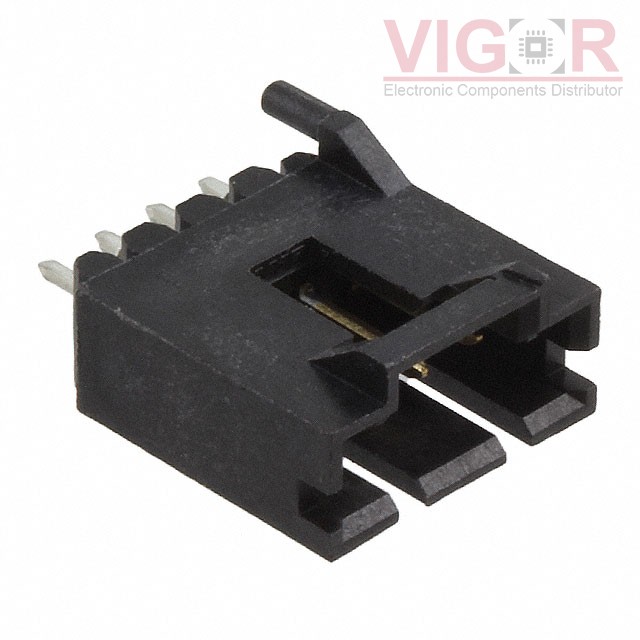

Image is for reference,
please contact us to get the real picture

Part No :

104809-3

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 4POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Sep 29 - Oct 03 2025
DataSheet
104809-3 PDF
Availability
0 pieces
Unit Price
$1.14524

Current price of 104809-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

104809-3 Specifications
Type Description
Series:AMPMODU MTE
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:0.545" (13.84mm)
Insulation Height:0.535" (13.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Board Guide, Keying Slot
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
