1510481406

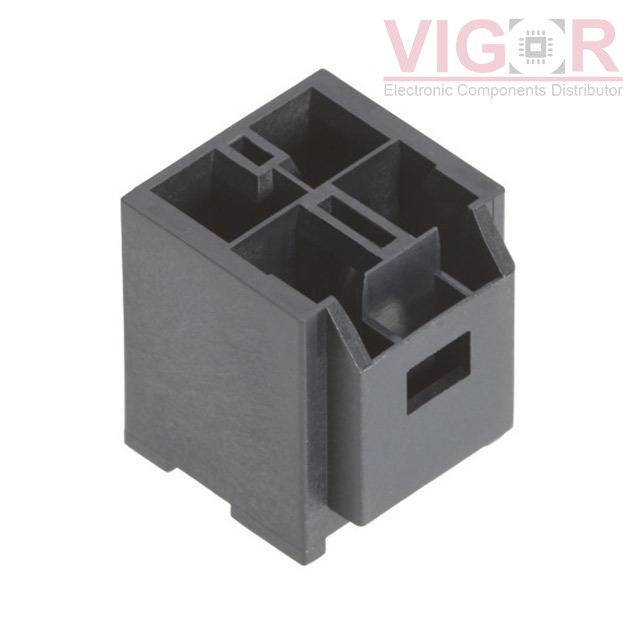

Part No :: 1510481406

Manufacturer: Woodhead - Molex

Description: CONN HEADER VERT 4POS 6.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1510481406 PDF

Availability: 0 pieces

Current price of 1510481406 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1510481406 Specifications

Type	Description
Series:	CP-6.5 151048
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.256" (6.50mm)
Number of Positions:	4
Number of Rows:	2
Row Spacing - Mating:	0.256" (6.50mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.348" (8.85mm)
Contact Length - Post:	0.150" (3.81mm)
Overall Contact Length:	-
Insulation Height:	0.630" (16.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	50.0µin (1.27µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
