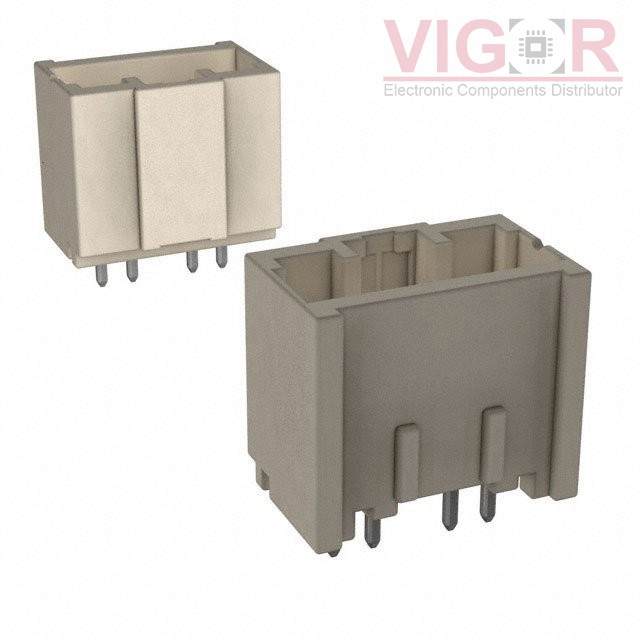

DF1EC-4P-2.5DSA(36)

Part No :: DF1EC-4P-2.5DSA(36)

Manufacturer: Hirose

Description: CONN HEADER VERT 4POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF1EC-4P-2.5DSA(36) PDF

Availability: 0 pieces

Unit Price: ~~$0.66000~~

Current price of DF1EC-4P-2.5DSA(36) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF1EC-4P-2.5DSA(36) Specifications

Type	Description
Series:	DF1E
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.177" (4.50mm)
Contact Length - Post:	0.142" (3.60mm)
Overall Contact Length:	-
Insulation Height:	0.425" (10.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polyamide (PA), Nylon
Features:	-
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	3A
Voltage Rating:	-
