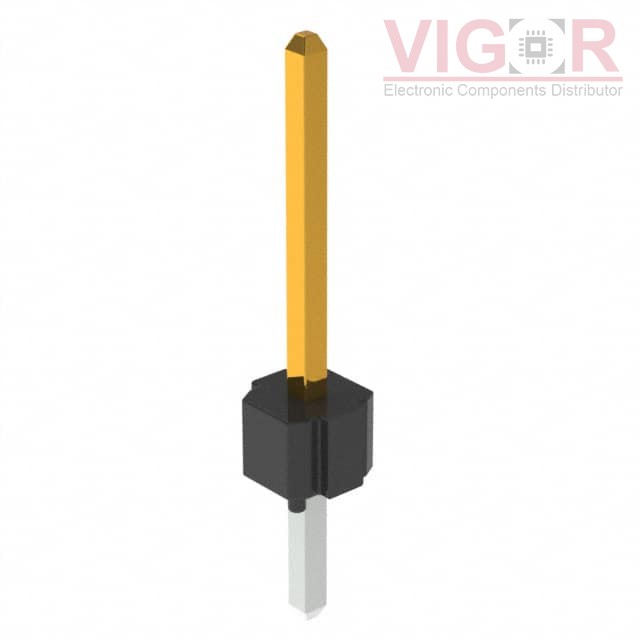

| Type | Description |
|---|---|
| Series: | BERGSTIK® II |
| Package: | Bulk |
| Part Status: | Active |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Positions: | 36000, Cuttable |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Number of Positions Loaded: | All |
| Style: | Board to Board |
| Shrouding: | Unshrouded |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Length - Mating: | 0.318" (8.08mm) |
| Contact Length - Post: | 0.120" (3.05mm) |
| Overall Contact Length: | 0.538" (13.67mm) |
| Insulation Height: | 0.100" (2.54mm) |
| Contact Shape: | Square |
| Contact Finish - Mating: | Gold or Gold, GXT™ |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Contact Finish - Post: | - |
| Contact Material: | Phosphor Bronze |
| Insulation Material: | Liquid Crystal Polymer (LCP) |
| Features: | - |
| Operating Temperature: | -65°C ~ 125°C |
| Ingress Protection: | - |
| Material Flammability Rating: | UL94 V-0 |
| Insulation Color: | Black |
| Current Rating (Amps): | 5A |
| Voltage Rating: | 110V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 36000 |
Current price of 78511-100HLF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
