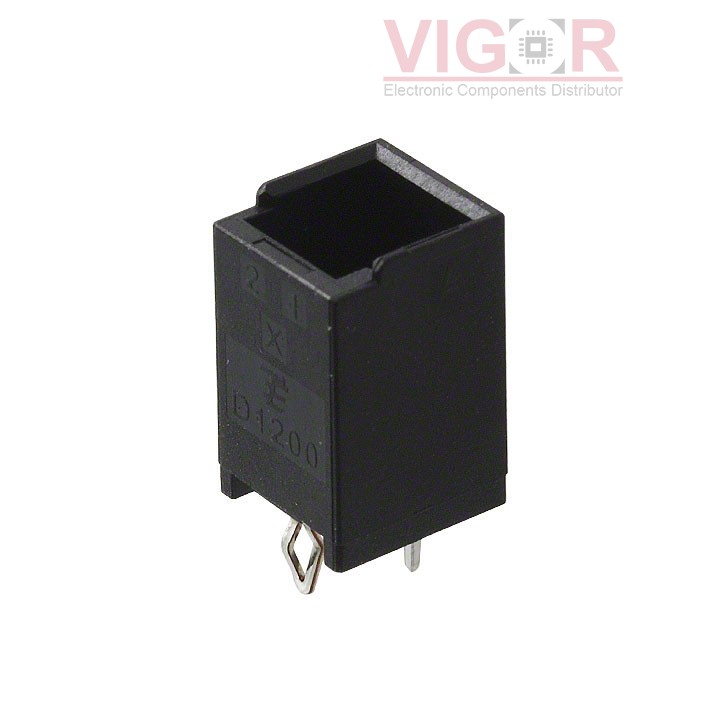

1-1871468-2

Part No :: 1-1871468-2

Manufacturer: Tyco Electronics

Description: CONN HEADER VERT 2POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-1871468-2 PDF

Availability: 124 pieces

Unit Price: ~~$1.39000~~

Current price of 1-1871468-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-1871468-2 Specifications

Type	Description
Series:	Dynamic D-1200
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.120" (3.05mm)
Overall Contact Length:	-
Insulation Height:	0.490" (12.44mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	5A
Voltage Rating:	250V
