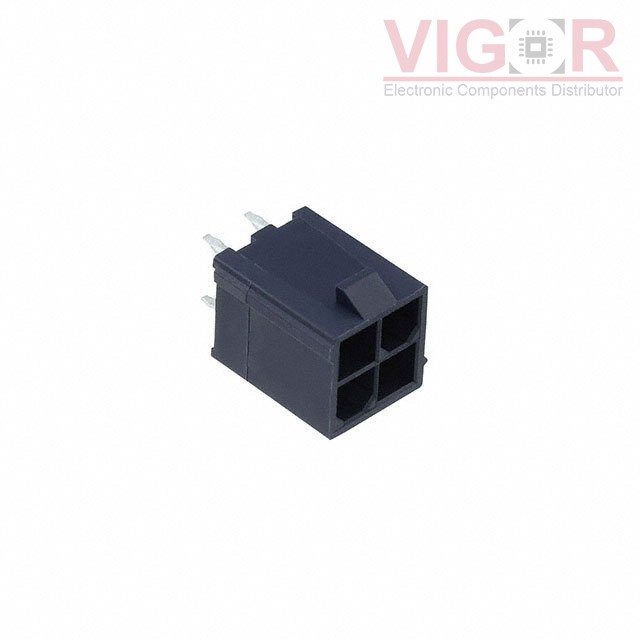

Product image
Product thumb
Part No :

1724470204

Manufacturer
Woodhead - Molex
VIGOR # :

3040485

Description
CONN HEADER VERT 4POS 4.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
1724470204 PDF
Country of origin
-
Date code
-
ads
1724470204 Specifications
Type Description
Series:Mini-Fit Jr 172447
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.165" (4.20mm)
Number of Positions:4
Number of Rows:2
Row Spacing - Mating:0.165" (4.20mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Glow Wire Compliant
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-2
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 746
Shipped from
HK warehouse
Expected Shipping Date
Feb 05 - Feb 09 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $1.15 $1.15
10 $1.01 $10.14
100 $0.87 $87.49
500 $0.72 $357.91
1920 $0.60 $1 145.32
5760 $0.56 $3 206.88
11520 $0.53 $6 093.04

Current price of 1724470204 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
TSM-107-01-F-DH-TR

TSM-107-01-F-DH-TR

CONN HEADER SMD R/A 14POS 2.54MM

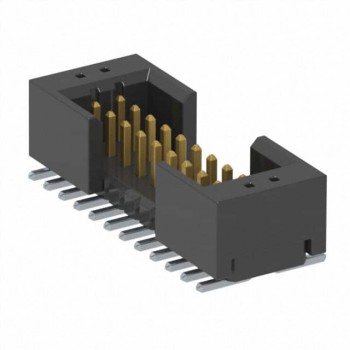

FTM-108-03-F-DV-S

FTM-108-03-F-DV-S

CONN HEADER SMD 16POS 1MM

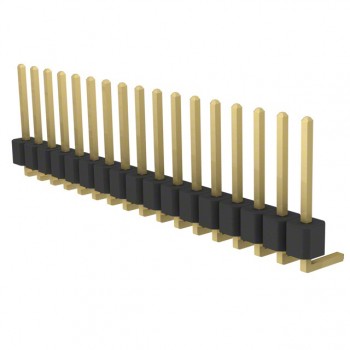

PRPC017SGAN-M71RC
