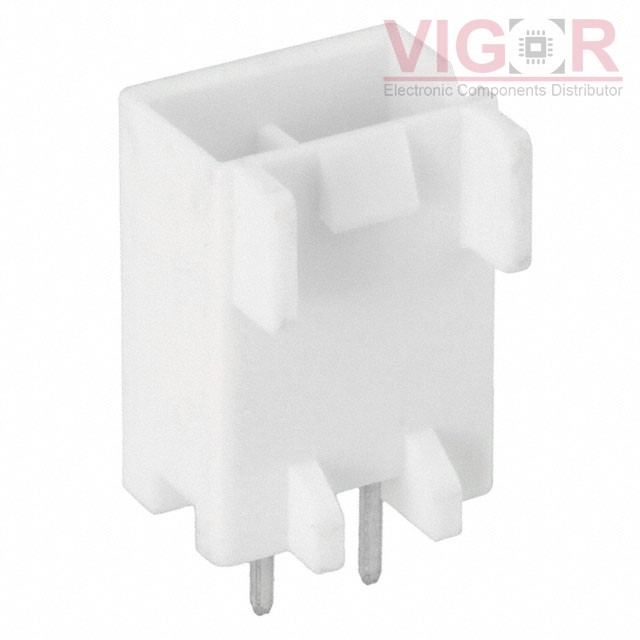

DF33C-2P-3.3DSA(24)

Part No :: DF33C-2P-3.3DSA(24)

Manufacturer: Hirose

Description: CONN HEADER VERT 2POS 3.3MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: DF33C-2P-3.3DSA(24) PDF

Availability: 43 pieces

Unit Price: ~~$0.37000~~

Current price of DF33C-2P-3.3DSA(24) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF33C-2P-3.3DSA(24) Specifications

Type	Description
Series:	EnerBee™ DF33C
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.130" (3.30mm)
Number of Positions:	2
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.453" (11.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Board Guide
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	White
Current Rating (Amps):	5A
Voltage Rating:	500V

Please confirm the specifications of the products when ordering.
