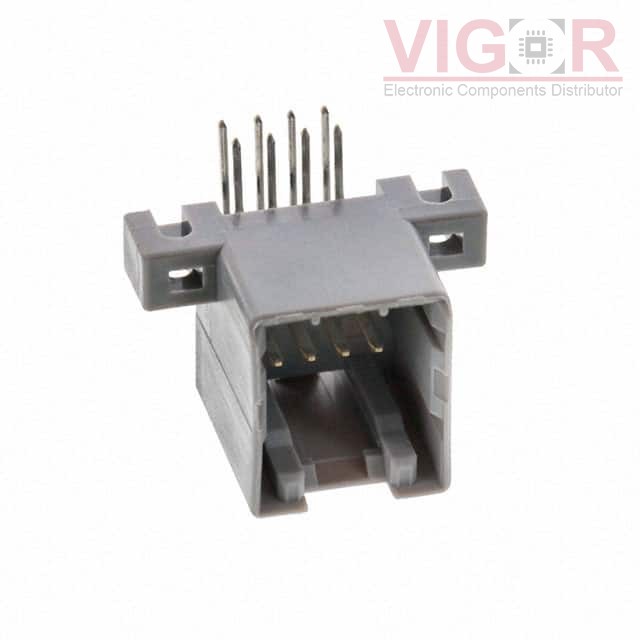

0681450825

Part No :: 0681450825

Manufacturer: Woodhead - Molex

Description: CONN HEADER R/A 8POS 2.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 0681450825 PDF

Availability: 1080 pieces

Unit Price: ~~$3.20000~~

Current price of 0681450825 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

0681450825 Specifications

Type	Description
Series:	68145
Package:	Tray
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.098" (2.50mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.205" (5.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.276" (7.00mm)
Contact Length - Post:	0.157" (4.00mm)
Overall Contact Length:	-
Insulation Height:	0.665" (16.90mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyester, Glass Filled
Features:	Mounting Flange
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 HB
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-
