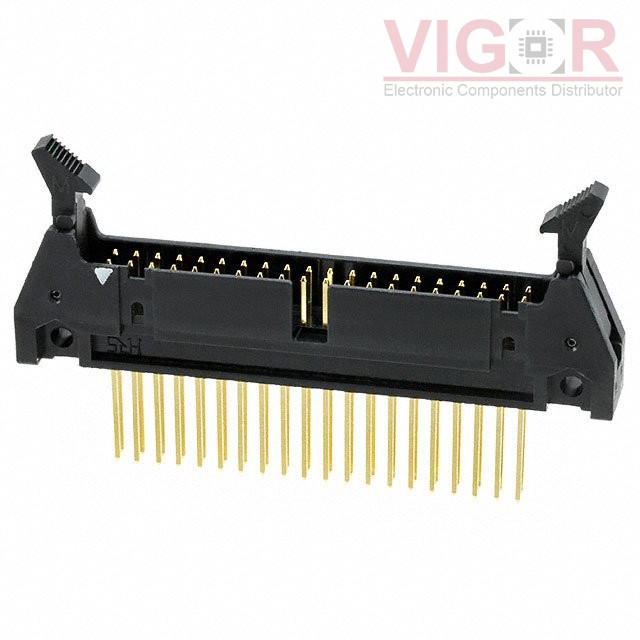

HIF3BA-40P-2.54W

Part No :: HIF3BA-40P-2.54W

Manufacturer: Hirose

Description: CONN HEADER VERT 40POS 2.54MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: HIF3BA-40P-2.54W PDF

Availability: 0 pieces

Current price of HIF3BA-40P-2.54W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HIF3BA-40P-2.54W Specifications

Type	Description
Series:	HIF3B
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Wire Wrap
Fastening Type:	Latch Lock/Eject Hooks
Contact Length - Mating:	0.236" (6.00mm)
Contact Length - Post:	0.516" (13.10mm)
Overall Contact Length:	1.043" (26.50mm)
Insulation Height:	0.701" (17.80mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Contact Finish - Post:	-
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Keying Slot
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A
Voltage Rating:	200V

Please confirm the specifications of the products when ordering.
