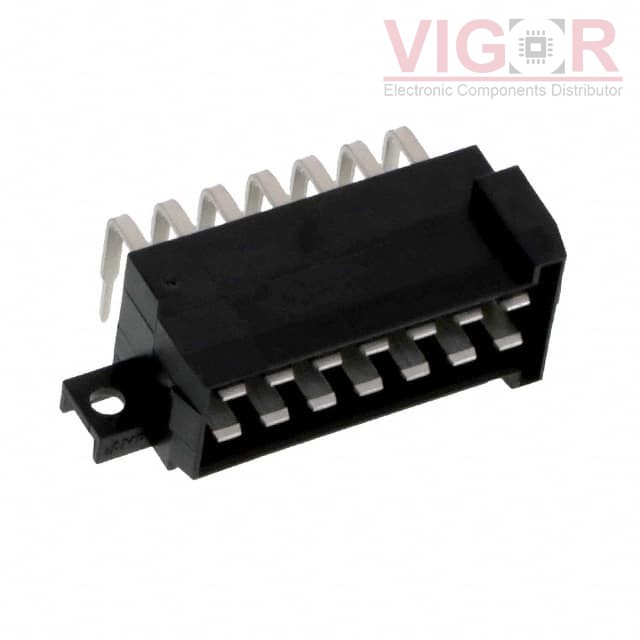

828801-5

Part No :: 828801-5

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 14POS 5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 828801-5 PDF

Availability: 293 pieces

Unit Price: ~~$6.57000~~

Current price of 828801-5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

828801-5 Specifications

Type	Description
Series:	Junior Power Timer
Package:	Tray
Part Status:	Active
Connector Type:	Plug
Contact Type:	Tab
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	14
Number of Rows:	2
Row Spacing - Mating:	0.197" (5.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	-
Contact Length - Mating:	0.366" (9.30mm)
Contact Length - Post:	0.138" (3.50mm)
Overall Contact Length:	-
Insulation Height:	0.748" (19.00mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-2
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
