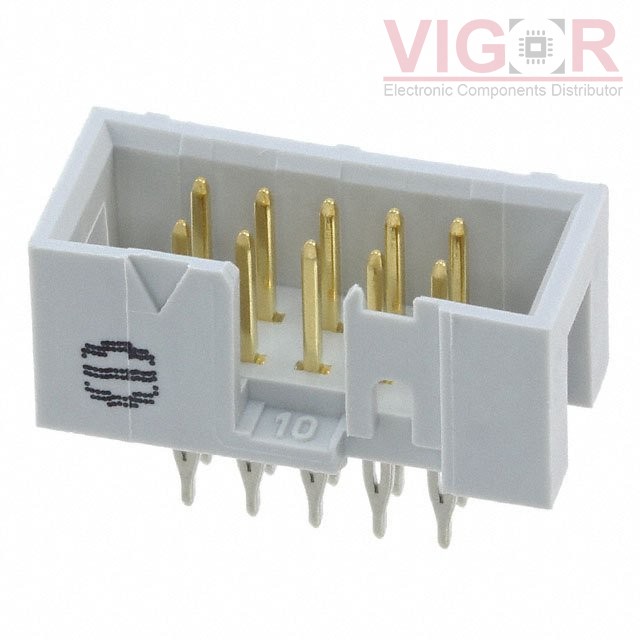

Product image
Product thumb
Part No :

09185106329

Manufacturer
HARTING
VIGOR # :

3042242

Description
CONN HEADER VERT 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
DataSheet
09185106329 PDF
Country of origin
-
Date code
-
ads
09185106329 Specifications
Type Description
Series:SEK
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.217" (5.51mm)
Overall Contact Length:-
Insulation Height:0.350" (8.89mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Keying Slot
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Gray
Current Rating (Amps):-
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 92
Shipped from
HK warehouse
Expected Shipping Date
Apr 10 - Apr 14 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.6000 $2.60
10 $2.3628 $23.63
25 $2.2178 $55.44
50 $2.1212 $106.06
100 $2.0247 $202.47
300 $1.8319 $549.58
500 $1.6873 $843.64
1000 $1.4462 $1 446.24

Current price of 09185106329 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
FTS-120-01-L-DV-A-TR

FTS-120-01-L-DV-A-TR

CONN HEADER SMD 40POS 1.27MM

1-640383-2

1-640383-2

CONN HEADER VERT 12POS 3.96MM

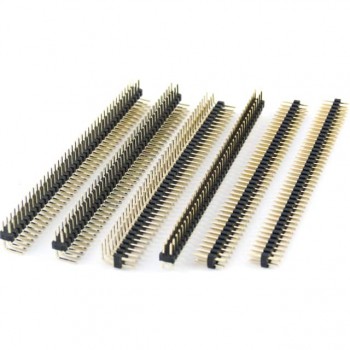

2112-2X08G00SB
