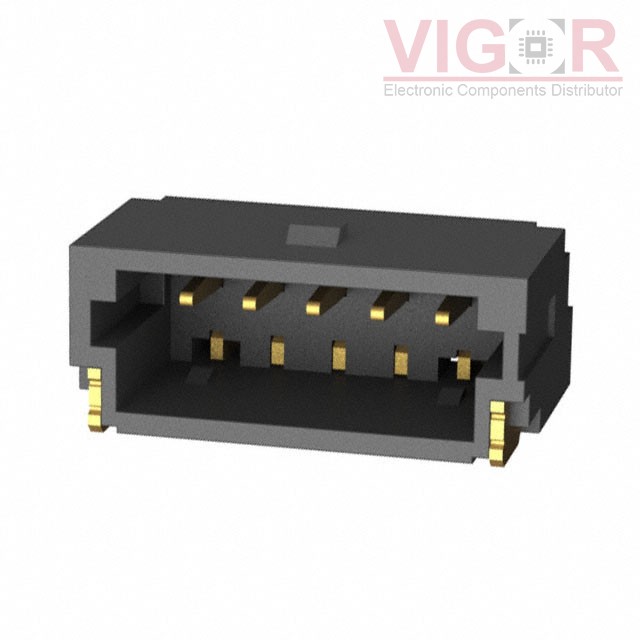

T1M-05-GF-S-RA-TR

Part No :: T1M-05-GF-S-RA-TR

Manufacturer: Samtec, Inc.

Description: CONN HEADER SMD R/A 5POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: T1M-05-GF-S-RA-TR PDF

Availability: 1707 pieces

Unit Price: ~~$2.62000~~

Current price of T1M-05-GF-S-RA-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

T1M-05-GF-S-RA-TR Specifications

Type	Description
Series:	T1M
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	5
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.181" (4.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	3.3A per Contact
Voltage Rating:	250VAC, 353VDC
