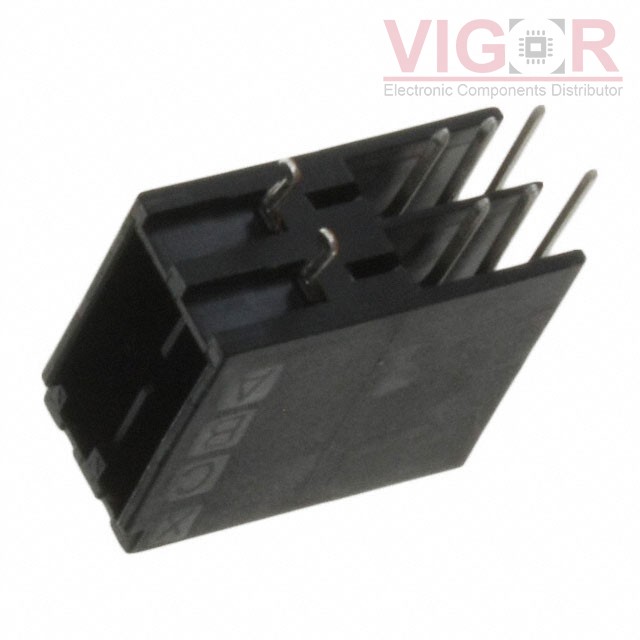

1-1827583-2

Part No :: 1-1827583-2

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER VERT 6POS 3.5MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: 1-1827583-2 PDF

Availability: 0 pieces

Unit Price: ~~$1.95000~~

Current price of 1-1827583-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-1827583-2 Specifications

Type	Description
Series:	Dynamic D-1500
Package:	Bulk
Part Status:	Active
Connector Type:	Header
Contact Type:	Tab
Pitch - Mating:	0.138" (3.50mm)
Number of Positions:	6
Number of Rows:	3
Row Spacing - Mating:	0.130" (3.30mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	0.122" (3.10mm)
Overall Contact Length:	-
Insulation Height:	0.594" (15.09mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Thermoplastic, Polyester, Glass Filled
Features:	Board Lock
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	5A
Voltage Rating:	250V
