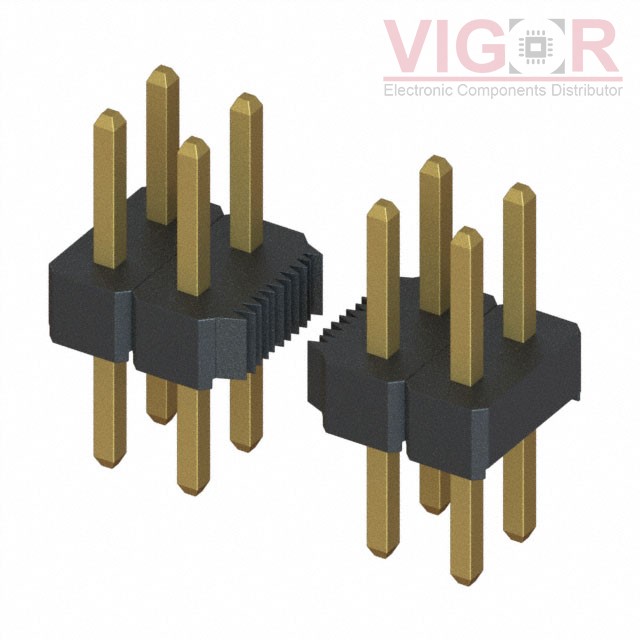

M22-2021705

Part No :: M22-2021705

Manufacturer: Harwin

Description: CONN HEADER VERT 34POS 2MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: M22-2021705 PDF

Availability: 0 pieces

Current price of M22-2021705 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M22-2021705 Specifications

Type	Description
Series:	M22
Package:	Bulk
Part Status:	Active
Connector Type:	Header, Cuttable
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	34
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.138" (3.50mm)
Contact Length - Post:	0.134" (3.40mm)
Overall Contact Length:	0.331" (8.40mm)
Insulation Height:	0.059" (1.50mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA6T), Nylon 6T
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	-
