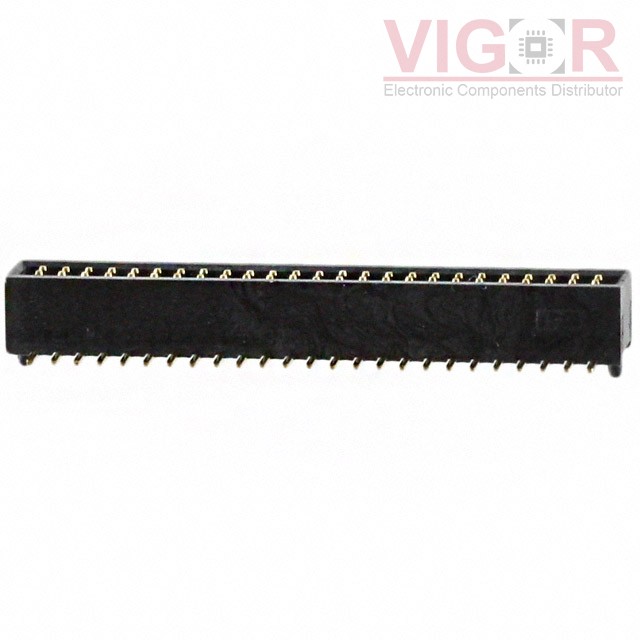

SBH51-LPSE-D25-SP-BK

Part No :: SBH51-LPSE-D25-SP-BK

Manufacturer: Sullins Connector Solutions

Description: CONN HEADER SMD 50POS 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

DataSheet: SBH51-LPSE-D25-SP-BK PDF

Availability: 0 pieces

Current price of SBH51-LPSE-D25-SP-BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SBH51-LPSE-D25-SP-BK Specifications

Type	Description
Series:	SBH51
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	50
Number of Rows:	2
Row Spacing - Mating:	0.039" (1.00mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.134" (3.40mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	Board Guide
Operating Temperature:	-40°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	-
